Do best to meet your technical in PCBs
5 Years
| Ask Lasest Price | |
| Brand Name : | TOPCBS |
| Model Number : | BIB and test Boards |
| Certification : | UL94V0 |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 10000unit per month |
| Delivery Time : | 10-14working days |

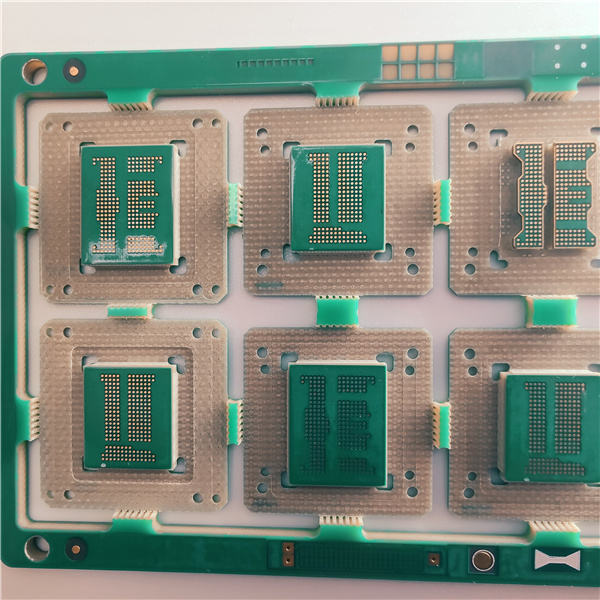

0.35pitch 8Layer HDI PCBs for Burn in boards and semiconductor Test boards / thin board
Burn-in is a process done to components prior to regular use in which the components are stressed to detect failure and ensure component reliability.
The PCB burn-in process is usually done at 125ºC, with electrical excitation applied to the samples. The process is facilitated by using burn-in boards where the samples are loaded. These boards are then inserted into the burn-in oven which supplies the necessary voltages to the samples while maintaining the oven temperature at 125ºC. The electrical bias applied may either be static or dynamic.
1 . Descriptions:
What is a BIB ?
A burn-in board is a printed circuit board that is used in the burn-in process. The components added to the board are stressed using extreme heat to highlight any failures. Once the stress tests have been completed engineers will analyse the results to make sure everything is working within the correct parameters.
2 . Specifications:
| Name | 0.35pitch 8Layer HDI PCBs for Burn in boards and semiconductor Test boards |
| Number of Layers | 8 |
| Quality Grade | IPC 6012 Class 2,IPC 6012 Class 3 |
| Material | IT180 |
| Thickness | 0.8mm |
| Min Track/Spacing | 75um/75um |
| Min Hole Size | Laser 75um |
| Solder Mask | Green |
| Silkscreen | White |
| Surface Finish | Immersion gold + OSP |
| Finished Copper | 12um |
| Production time | 10-21 working days |
| Lead time | 2-3 days |
|
|
