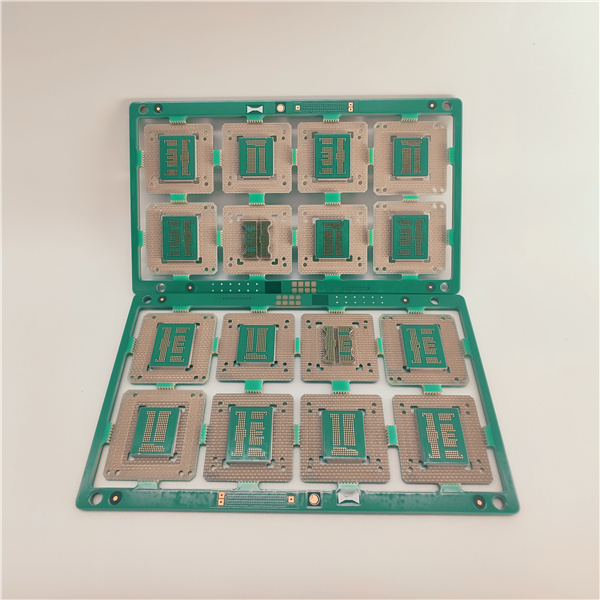

    Thru Hole Burn In Test Pcb Electronic Board 0.25mm Pitch

    Ask Lasest Price
    Brand Name : TOPCBS
    Model Number : BIB and test Boards
    Certification : UL94V0
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000unit per month
    Delivery Time : 10-14working days
    • Product Details
    • Company Profile

    Thru Hole Burn In Test Pcb Electronic Board 0.25mm Pitch

    0.25 pitch 12Layer HDI PCBs for Burn in boards and semiconductor Test boards / thin board


    • Dedicated and universal board designs
    • 2 to 22+ layers of polymide
    • 200°C maximum temperature
    • Gold-plated connectors and socket lands
    • All burn-in board styles available
    • BGA, LGA, PGA, QFP, TSOP, micro-BGA, SOJ, PLCC, DIP, or custom-designed sockets
    • -55°C to +150°C temperature range (up to 250°C with special board materials)
    • Loader/unloader compatibility

    1 . Descriptions:


    What is a BIB ?


    A burn-in board is a printed circuit board that is used in the burn-in process. The components added to the board are stressed using extreme heat to highlight any failures. Once the stress tests have been completed engineers will analyse the results to make sure everything is working within the correct parameters.


    2 . Specifications:


    Name0.25pitch 12Layer HDI PCBs for Burn in boards and semiconductor Test boards
    Number of Layers12
    Quality GradeIPC 6012 Class 2,IPC 6012 Class 3
    MaterialIT180
    Thickness0.7mm
    Min Track/Spacing75um/75um
    Min Hole SizeLaser 75um
    Solder MaskGreen
    SilkscreenWhite
    Surface FinishImmersion gold + OSP
    Finished Copper12um
    Production time10-21 working days
    Lead time2-3 days
